Sinergy e-TRacKER compatible battery

£20.10 £24.12 Inc Tax

GTIN: N/A SKU: web EE400228 Category: Tag:


Euro Energy Part Number: EE400228

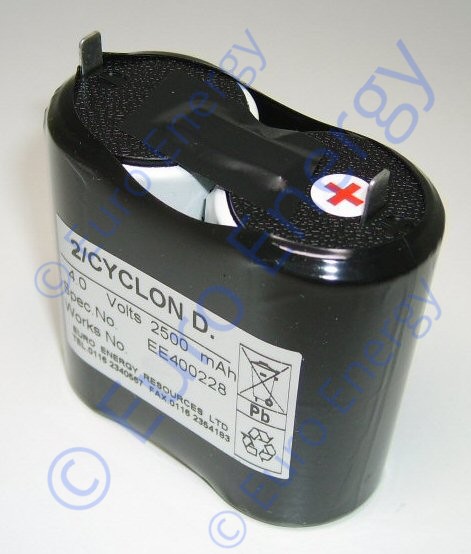

Sinergy e-TRacKER Energy Monitor compatible battery pack.
Voltage/Capacity: 4.0V/2500mAh, 2 x Cyclon D cells.
Chemistry: Lead Acid
Approx Size: 69mm L x 345mm W x 68mm H
Approx Weight: 0.36 Kg/360g
This is a compatible battery for use with the Sinergy e-TRacKER energy monitor and is built using 2 Cyclon D cells.
The Sinergy e-TRacKER is a portable kWh meter, allowing the monitoring of incoming power supply to show the pattern of demand over an hour, day, week or month.
As a portable device, e-Tracker gives the flexibility to use it for measuring circuits and specific equipment without the need to have a fixed sub-metering solution.
e-Tracker’s practicality extends down to individual loads enabling trials to be done on manufacturing controls for parameters such as temperature, pressure, speed or material specification and if product quality can be retained, then the reduced count of kWh’s will influence whether this manufacturing trial could be adopted permanently.
To help identify where energy is being wasted, the e-Tracker also displays average and peak demand to enable the calculation of load factor, and through measurement, it creates a pattern of usage. This information helps to determine any causes of demand excursions and potential unauthorised consumption.
Phase current imbalance affects energy costs by increasing temperature losses on neutral or phase cables and distribution transformers.

Poor power factor causes higher currents to flow for the equivalent plant energy conversion compared with unity power factor. e-Tracker will help determine if distribution wiring needs to be re-routed or whether departmental or machine level power factor correction would be cost effective. The cost of expanding production or occupancy can be drastically reduced if e-Tracker proves that the capacity of an existing distribution transformer and cables are accurate.

Features of the Sinergy e-TRacKER:-

• e-Tracker works with a wide range of CTs, including split core and bobbin CTs
• 3 flexeclamp CTs are included in the e-Tracker kit, giving flexibility to get to hard to reach cables
• Measures current from 10Amps to 2500Amps
• Magnetic back for easy mounting
• Pulse input
• Optional voltage connections
• CT amps range indicator
• EV-Trac electrostatic phase identifier
• Data is downloadable via USB memory stick
• 4.0V/2500mAh battery has upto 16 days battery life or can be run off mains supply
• Optical or magnetic gas meter reader available

For further information or to discuss our range of Original Manufacturer medical batteries & Compatible medical batteries, Original Manufacturer medical accessories and general purpose Sealed Lead Acid/VRLA batteries contact our friendly & knowledgeable Customer Service team on 0116 2340567 or email

Additional information

Weight 0.36 kg
